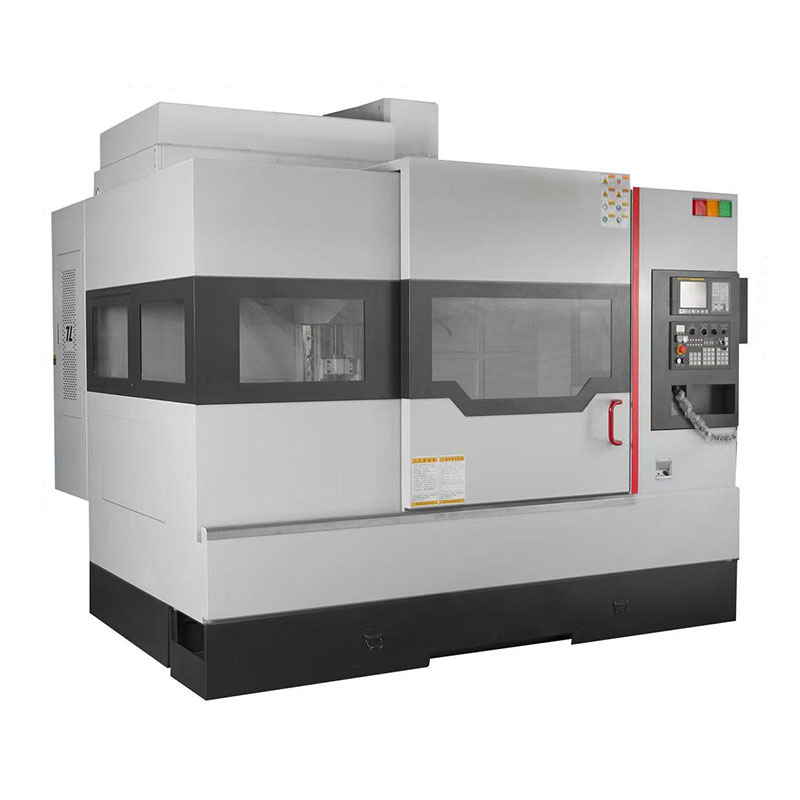

Vertical machining centre TL series

TL series technical highlights

1. Fully independent carbon-free brush AC servomotor.

2. Excellent line of sight to ensure the safety setting of the machine.

3. Standard FANVC operating system Ensure high profile accuracy (mitsubishi optional).

4. Can be close on three sides, easy to repair emergency treatment of tool bank.

5. Double open door design prevents accidents.

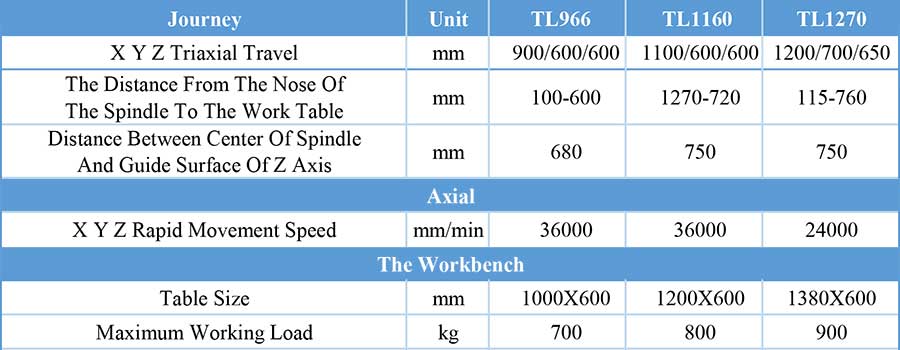

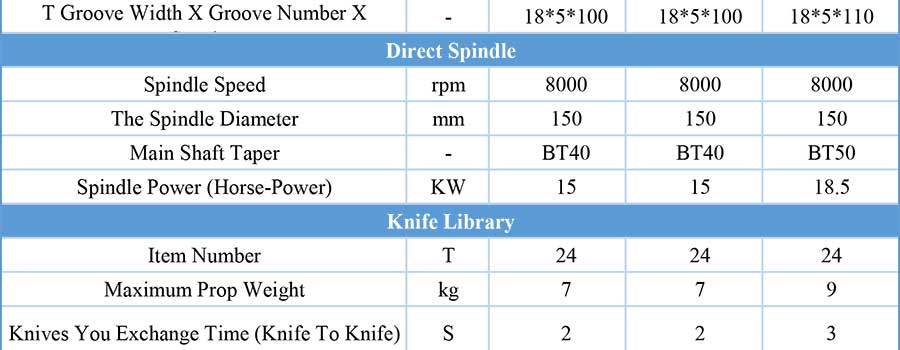

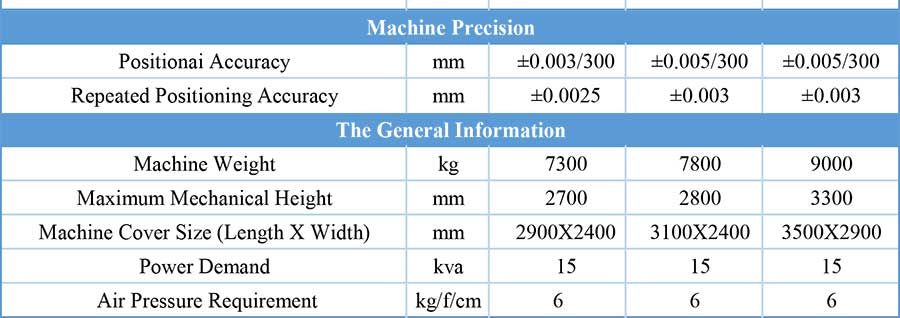

TL series Parameter (Specification)

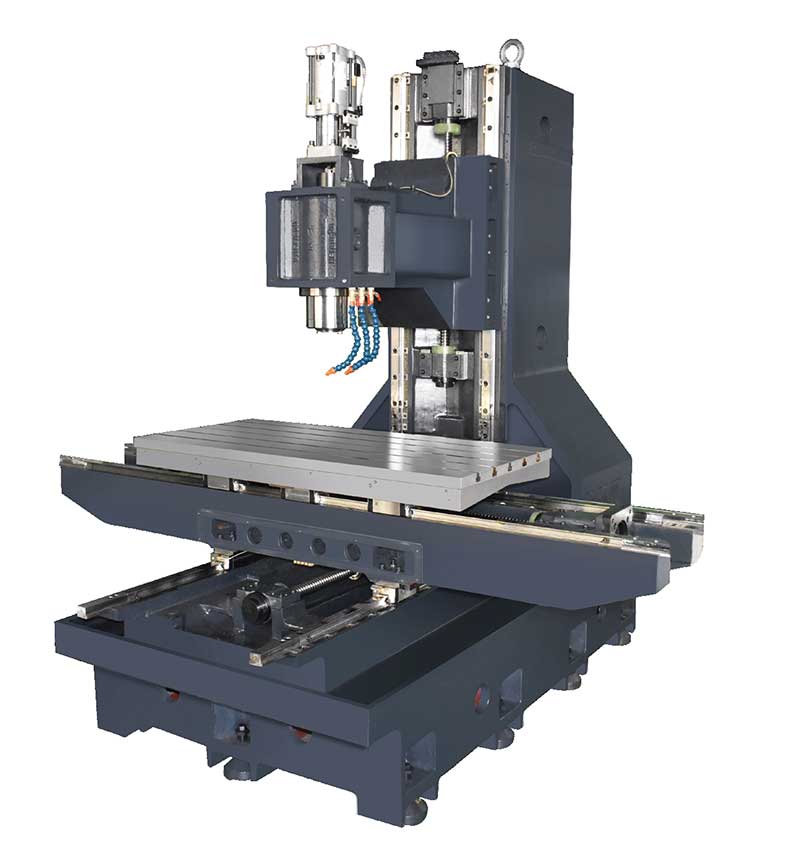

TL series feature of Spindle

1. Three-axis high speed and high precision line rail design, X and Z axis for six slider design, line rail width of 45 precision roller line rail, greatly improve the cutting rigidity of the machine.

2. Adopting integral casting, it has three characteristics of stability, high rigidity and firmness, providing the most stable load-bearing support, and working table not overhanging, cooperating with each shaft to strengthen the design, giving full play to rigidity and stability.

3. The z-axis adopts no-weight design to increase the direct drive of the z-axis motor, so that the high-speed feeding or drilling control is accurate.

4. The rigid body casting can absorb vibration and affect the surface accuracy of the workpiece.

Technical and After-sales Service

1. English Technical files provided.

2. Machine tested before the delivery.

3. Technical support online service provided（Provide site test).

4. Consumable parts at reasonable price when replaced.
