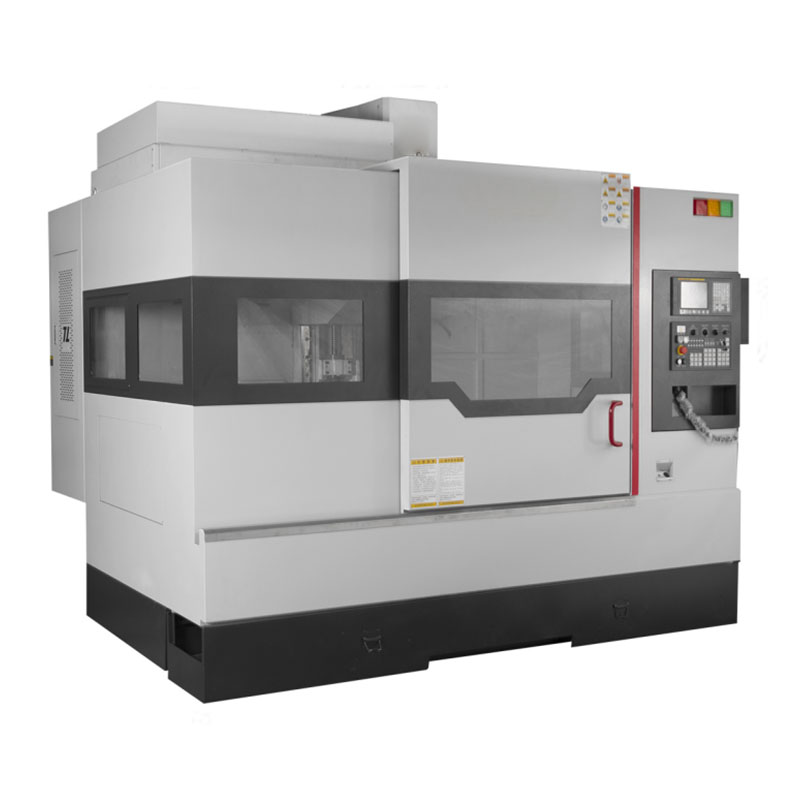

Vertical machining center EV series

EV series technical highlights

1. The z-axis adopts the design of no weight to increase the direct drive of the z-axis motor and makethe high-speed feed or drill pick control accurate.

2. Standard BT40 direct spindle driven by coupling, no belt noise, low vibration, more suitable for highspeed and high precision processing (optional).

3. The triaxial motor seat and the casting are cast simultaneously to increase the rigidityand precision of feed system.

4. The one-piece bearing, block is machined with unique precision bearing sleeve design to ensure thethree-point concentricity of screw assembly and long precision maintenance.

5. The base, integrated with a gradient chassis, provides the most stable load-bearingcapacity,with standard side flush, not easy to chip.

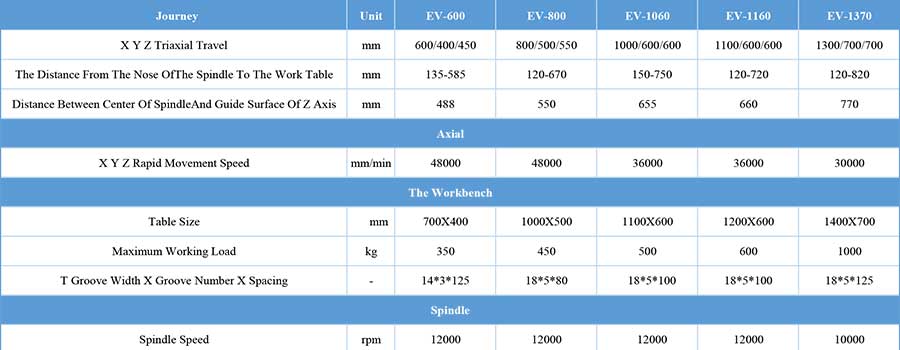

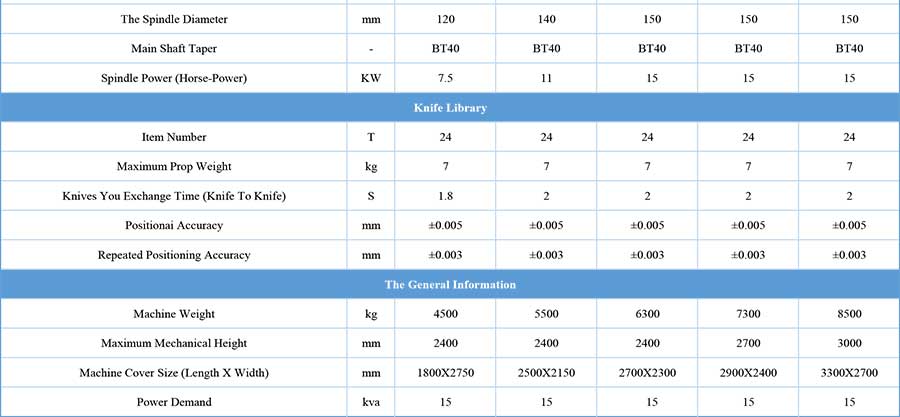

EV series Parameter (Specification)

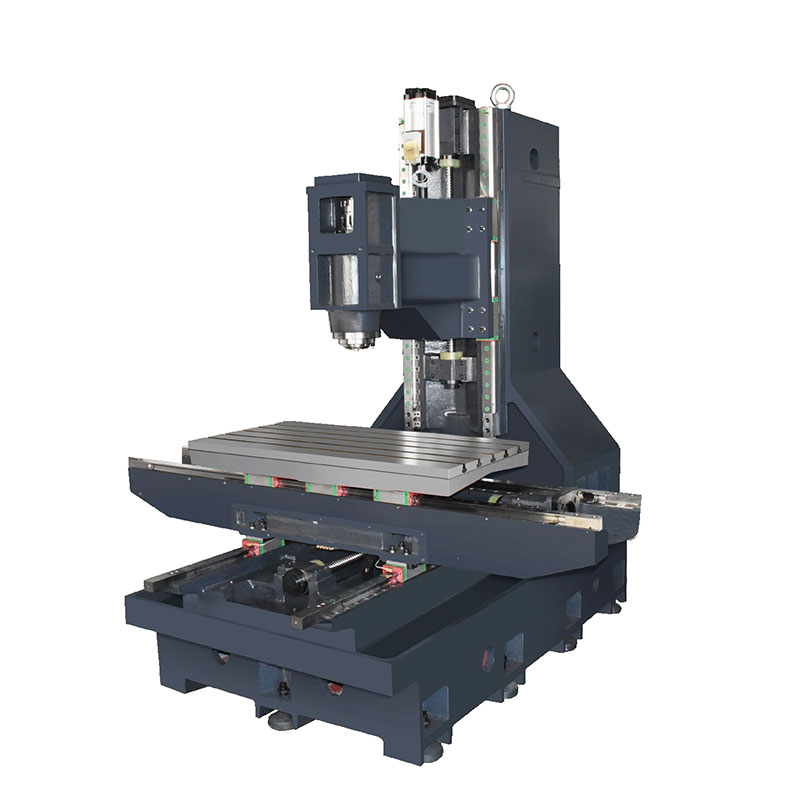

EV series Feature of Spindle

1. Roller track ensures strength while increasing movement speed.

2. Saddle adopts two track and six slide block design.

3. The ultra wide base of integrated forming has high rigidity and stability.

Technical and After-sales Service

1. English Technical files provided.

2. Machine tested before the delivery.

3. Technical support online service provided（Provide site test).

4. Consumable parts at reasonable price when replaced.
