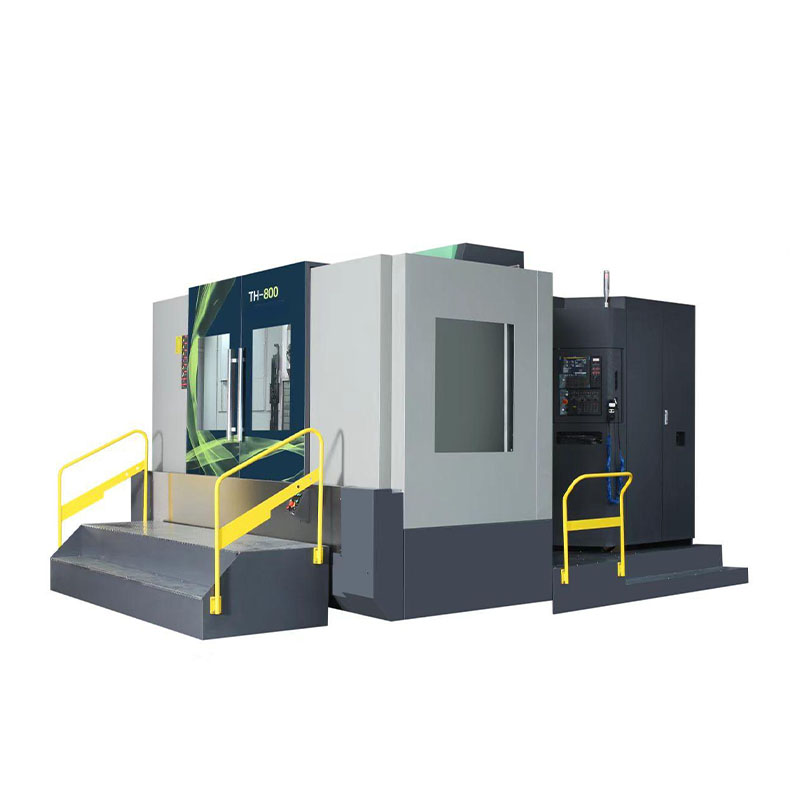

Horizontal machining centre TH series

TH series technical highlights

1. Adopting German heavy-duty high-precision roller guide rail, with a preload of V3 level, capable of withstanding heavy cutting loads and stable accuracy.

2. All main components are made of mihanna cast iron and high tension casting materials, with strong shock absorption and excellent wear resistance; And through stress relief and aging treatment, ensure that the

machine can maintain the best accuracy for a long time.

3. All main components have undergone 3D dynamic finite element analysis, which can enhance the stability of high-speed cutting.

4. The base adopts a T-shaped layout to improve the overall structural rigidity and vibration resistance.The B-axis standard is equipped with a one degree dividing workbench (1 ° x360) to improve the efficiency of machining parts.

5. The machine is equipped with a reserved spiral chip conveyor interface and a cutting flushing device that can automatically discharge chips in a timely manner, ensuring stable machining accuracy.

6. All main components are made of mihanna cast iron and high tension casting materials, with strong shock absorption and excellent wear resistance; And through stress relief and aging treatment, ensure that the machine can maintain the best accuracy for a long time.

7. All main components have undergone 3D dynamic finite element analysis, which can enhance the stability of high-speed cutting. The screw adopts a set of 60 ° angle contact ball bearings, with double support and pre

stretching to ensure transmission accuracy.

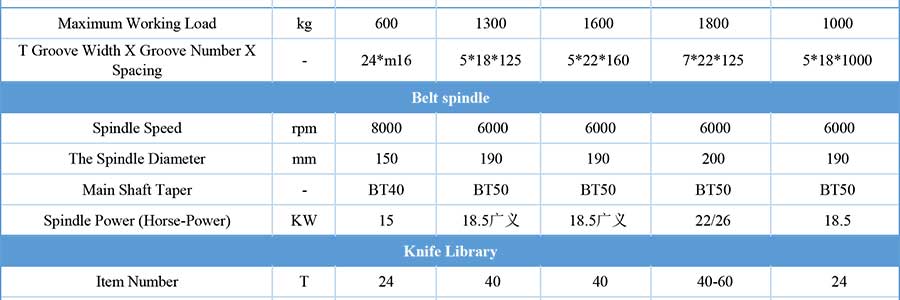

TH series Parameter (Specification)

Technical and After-sales Service

1. English Technical files provided.

2. Machine tested before the delivery.

3. Technical support online service provided（Provide site test).

4. Consumable parts at reasonable price when replaced.
